Subsea Manifold

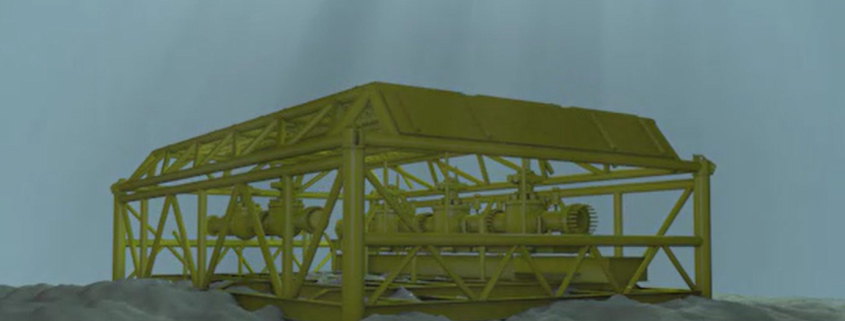

A production manifold is a subsea structure containing the valves and pipework to direct produced fluids from several wells into one or more pipelines. A typical production manifold might be up to 25 metres long, 20 metres wide and 7 metres high, weighing around 300 tonnes. As production manifolds normally connect a cluster of subsea wells they are most commonly found within 500m safety zones.
